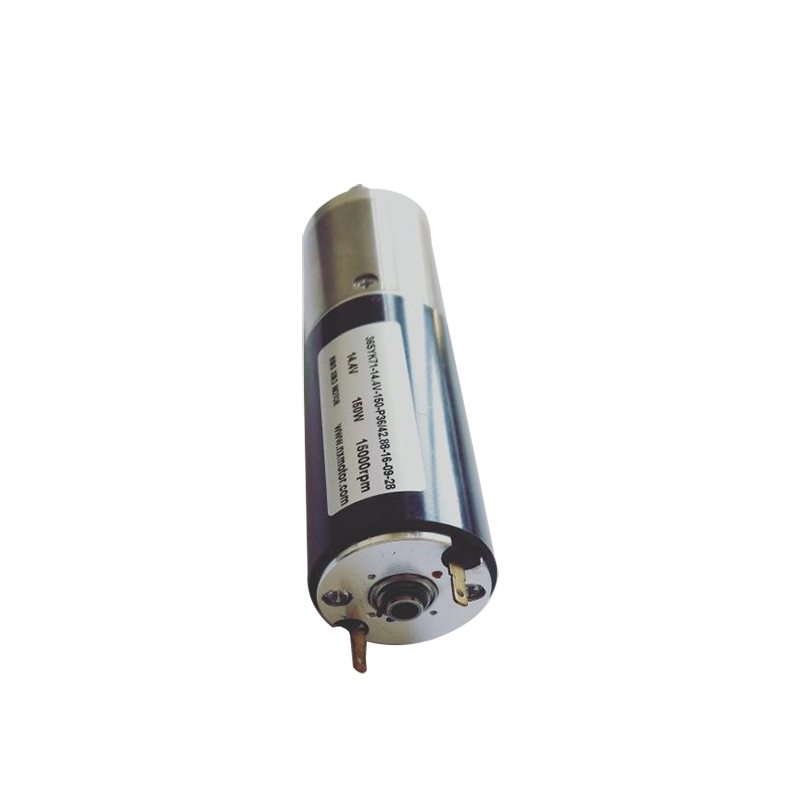

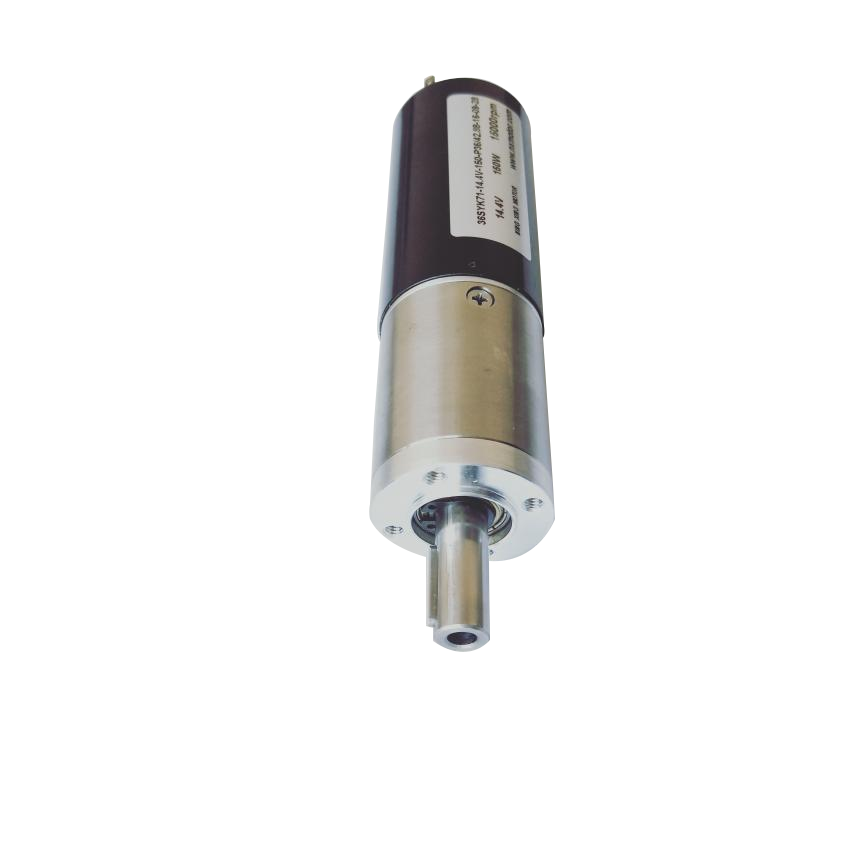

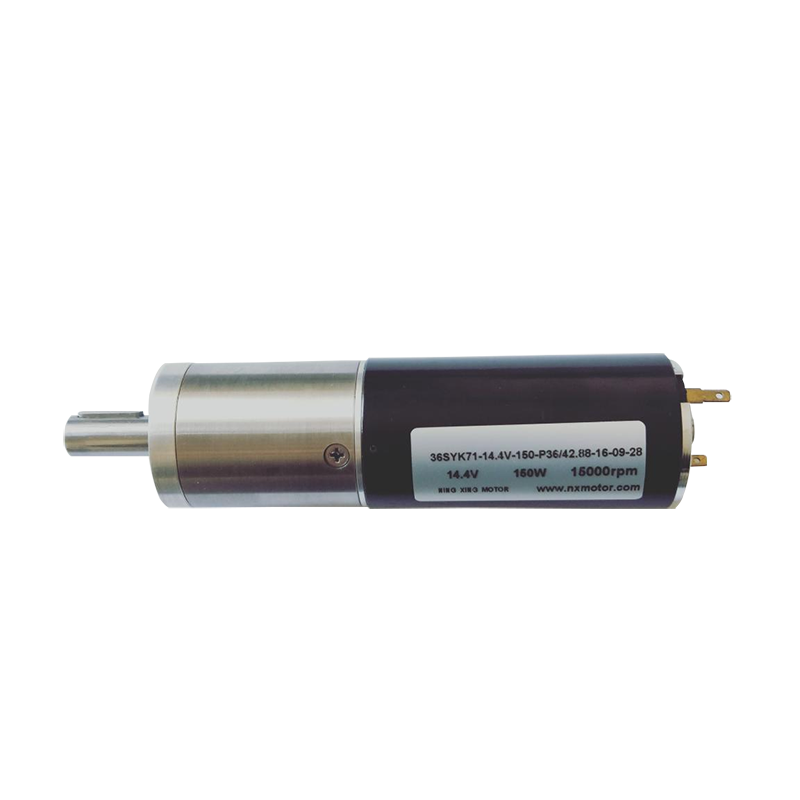

Planetary Gearhead 36mm

As the professional manufacture, we would like to provide you Ruixing Planetary Gearhead 36mm. And we will offer you the best after-sale service and timely delivery. The 36mm planetary gearhead, in particular, is often used in applications that require a high output torque, such as:Industrial automation, Material handling, Printing machinery, Food processing equipment, Packaging machinery. In these applications, the 36mm planetary gearhead can provide precise motion control and increased torque output, improving the efficiency and reliability of the machinery.

Parameter teknis
Diameter Gearbox		mm		36
Bantalan Poros		opsional/-		Ball Bearing
Reresik Radial		mm		≤0.1
Axial Clearance		mm		≤0.2
Kacepetan Input Idin		rpm		≤10.000
Rekomendasi Range Suhu		℃		-20 kanggo +125
Pasukan Izin Instalasi		N		≤120
Beban aksial		N		≤80
Beban Radial		N		≤100
Aplikasi Khas
Piranti medis		Produk digital		UAV		otomatisasi industri
informasi produk
1		panggung	1	2	3		4		5
2		Jumlah Pesenan	1236002	1236010	1236035	1236073	1236097	1236159	1236274	1236402
3		rasio	3.75	14.06	52.73	141.56	197.75	474.27	114,844	3082.77
4		Jumlah Pesenan	1236004	1236014	1236042	1236077	1236109	1236182	1236303	1236432
5		rasio	4.67	17.50	65.63	169.00	246.09	660.59	1429.17	4293.85
6		Jumlah Pesenan	1236006	1236019	1236051		1236124	1236198	1236333	1236449
7		rasio	6.50	21.78	81.67		306.25	920.11	1778.52	5980.72
8		Jumlah Pesenan		1236024	1236061		1236142		1236362
9		rasio		30.33	101.63		381.11		2213.27
1		L (mm)	36	43.3	50.6		57.9		65.2
2		Torsi (Nm)	4.0	8.0	16.0		16.0		20
3		Torsi Stall(Nm)	5.0	12.0	25.0		25.0		30
4		Efisiensi Maks (%)	90	81	73		65		59
5		Bobot (g)	210	245	280		315		350
6		Tanpa Beban Backlash (°）	0.8	1.0	1.0		1.0		1.2
