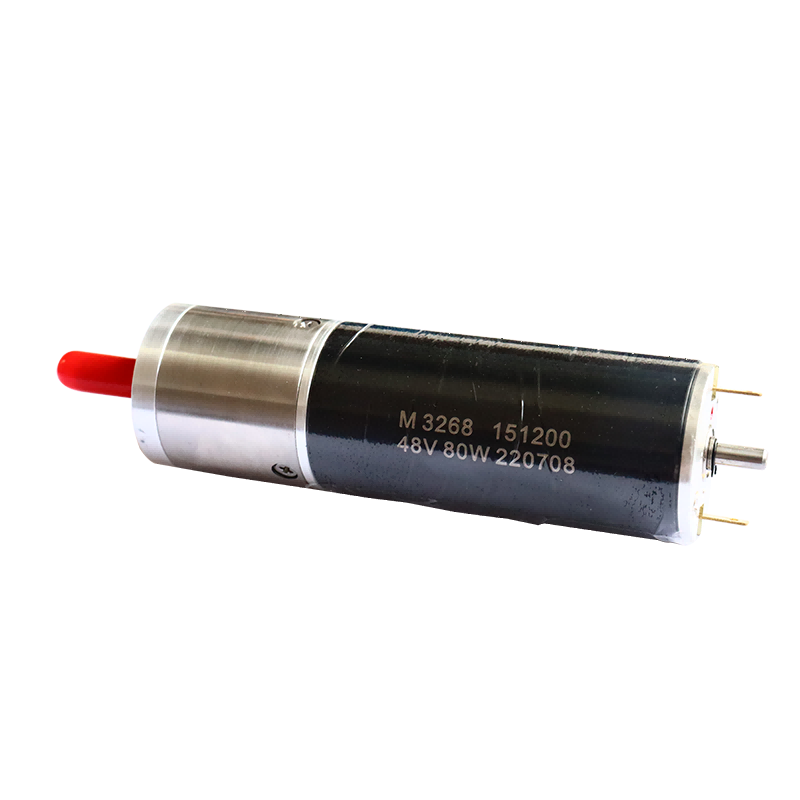

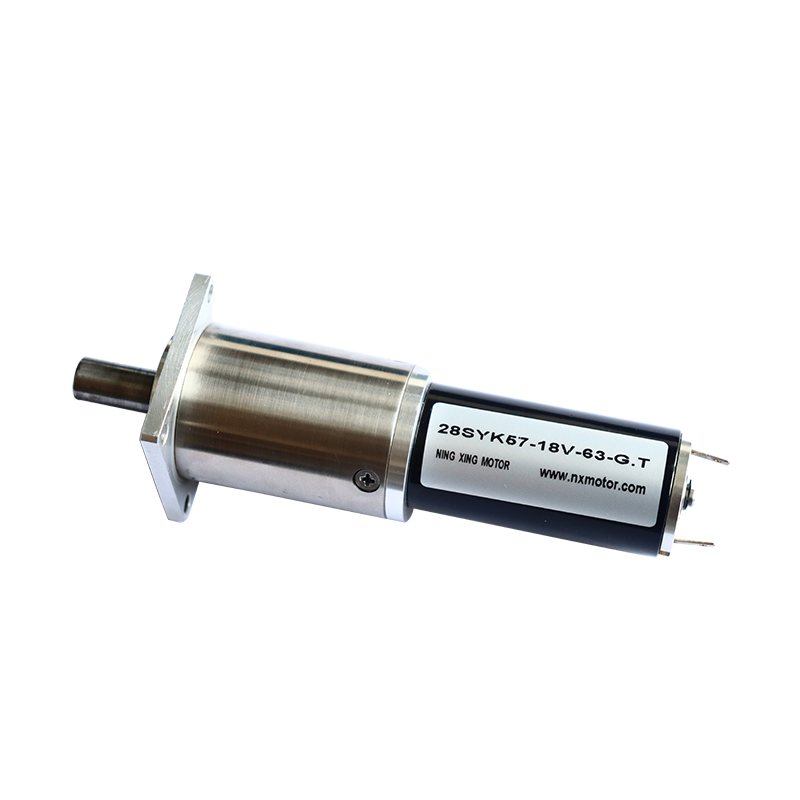

Planetary Gearhead 32mm

Ningbo Ruixing Motor Co.,LTD is China manufacturer & supplier who mainly produces Planetary Gearhead 32mm with many years of experience. Hope to build business relationship with you. Planetary gearheads offer several advantages, such as high torque output, low backlash, and high efficiency. They are suitable for various applications, including robotics, medical devices, automotive and aerospace components, precision machinery, and camera gimbals.

Parameter teknis
Diameter Gearbox		mm		32
Bantalan Poros		opsional/-		Ball Bearing
Reresik Radial		mm		≤0.1
Axial Clearance		mm		≤0.2
Kacepetan Input Idin		rpm		≤10.000
Rekomendasi Range Suhu		℃		-20 kanggo +125
Pasukan Izin Instalasi		N		≤120
Beban aksial		N		≤80
Beban Radial		N		≤100
Aplikasi Khas
Piranti medis		Produk digital		UAV		otomatisasi industri
informasi produk
1		panggung	1	2	3		4		5
2		Jumlah Pesenan	1232001	1232008	1232036	1232071	1232137	1232202	1232389	1232540
3		rasio	3.11	9.68	30.11	71.68	159.42	297.66	693.79	1428.77
4		Jumlah Pesenan	1232004	1232017	1232047	1232077	1232146	1232221	1232402	1232600
5		rasio	4.00	14.93	46.46	80.14	178.23	344.06	765.21	1846.41
6		Jumlah Pesenan	1232005	1232022	1232051	1232085	1232170	1232244	1232423	1232663
7		rasio	4.80	19.20	51.24	92.16	223.00	412.16	855.52	2548.04
8		Jumlah Pesenan		1232027	1232061	1232095	1232188	1232270	1232454	1232698
9		rasio		23.04	62.01	110.59	266.24	530.84	988.89	3174.00
1		L1 (mm)	31.6	37.9	44.2		50.5		56.8
2		L (mm)	31.6	37.9	44.2		50.5		56.8
3		Torsi (Nm)	1.0	1.5	2.5		3		5
4		Torsi Stall(Nm)	2.0	3.0	5		6		7.5
5		Efisiensi Maks (%)	90	81	73		65		59
6		Bobot (g)	125	147	169		191		213
7		Non-Load Backlash(°)	1	1.5	1.5		2		2
